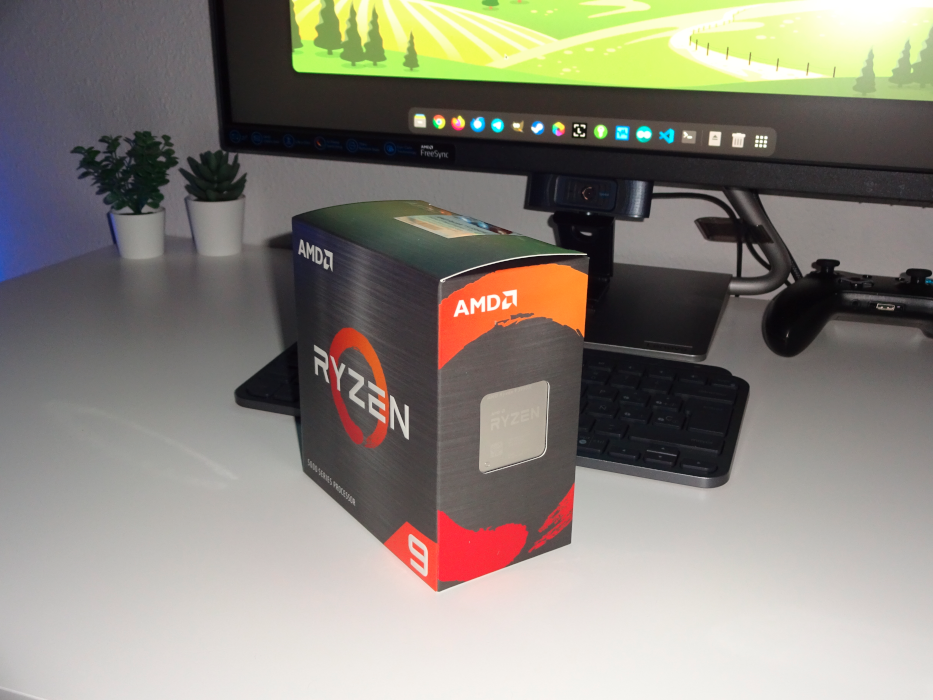

# Overclocking AMD Ryzen 9 5950X

<figure><img src="https://1432118199-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8OmP3fsuoPnoJAJysYDx%2Fuploads%2FMAxEcIe0COMpOuXtz7Ii%2Fimage.png?alt=media&#x26;token=1054bd4d-8813-41f1-96b8-2265f4cf0733" alt=""><figcaption></figcaption></figure>

<figure><img src="https://1432118199-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F8OmP3fsuoPnoJAJysYDx%2Fuploads%2FRXSH81u6F2Jjub4RQKq1%2Fimage.png?alt=media&#x26;token=bb448d3b-da63-4f4f-bb71-9aa50e7f397b" alt=""><figcaption></figcaption></figure>

**Motherboard:** Aorus X570 Elite\
**Version bios:** [F37](https://www.gigabyte.com/latam/Motherboard/X570-AORUS-ELITE-rev-10/support#support-dl-bios)

| Specifications   | value   |
| ---------------- | ------- |
| Codename         | Vermeer |
| CPU Cores        | 16      |
| Threads          | 32      |
| Max. Boost Clock | 4.9Ghz  |
| Base Clock       | 3.4GHz  |
| L2 Cache         | 8Mb     |
| L3 Cache         | 64Mb    |
| CPU Socket       | AM4     |
| Default TDP      | 105W    |

\
\
**Tweaker**

| key                       | value            |
| ------------------------- | ---------------- |
| Core Performance Boost    | Auto             |
| SVM Mode                  | Enabled          |
| AMD Cool\&Quiet function  | Enabled          |
| PPC Adjustment            | PState 0         |
| Global C-state Control    | Enabled          |
| Power Supply idle Control | Low Current Idle |
| CCD Control               | Auto             |
| Downcore Control          | Auto             |
| SMT Mode                  | Auto             |
| CPPC                      | Auto             |
| CPPC Preferred Cores      | Auto             |

\
**Settings**

| key                 | value   |
| ------------------- | ------- |
| Above 4G Decoding   | Enabled |
| Re-Size BAR Support | Enabled |

\
**Settings / Manual CPU Overclocking**

| key           | value |
| ------------- | ----- |
| CPU Frecuency | 4550  |
| CPU Voltage   | 1238  |
| CCD Control   | Auto  |
| Core Control  | Auto  |
| SMT Control   | Auto  |
